XG3140R

XGMA

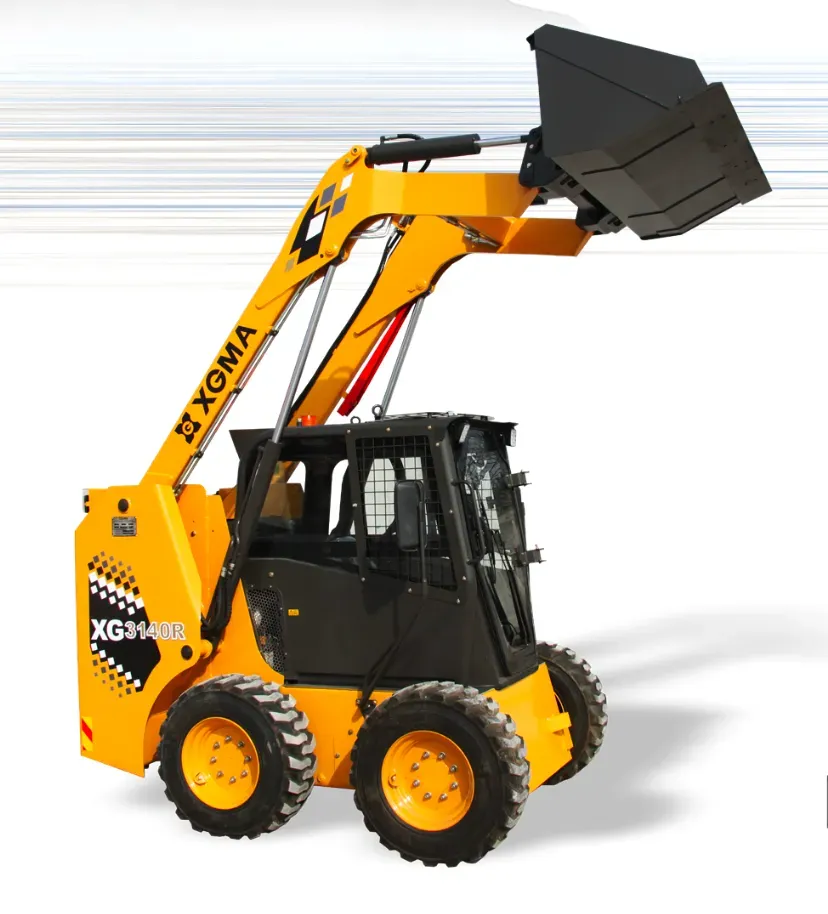

XGMA XG3140R, a radial-lift skid steer loader designed for high performance and durability in various material handling and construction applications.

Starting from
Call our sales team for pricing
6 Month Service Warranty
24 Month Dedicated Service
Paper Cleared and Always up-to-date
Operating Weight
~3.4 - 3.6 Tons

Provides the necessary mass and stability for lifting heavy loads while maintaining maneuverability.

Rated Capacity
~900 - 1,200 kg

The maximum weight the machine can safely lift and transport under normal conditions.

Hydraulic System
High-Flow

Features advanced hydraulic pumps and valves to ensure smooth, responsive control of the arm and attachments.

Cab Design
FOPS/ROPS

Includes integrated Falling Object and Roll-Over Protective Structures to ensure operator safety in hazardous environments

Technical Specifications

Comprehensive engineering data for operational planning.

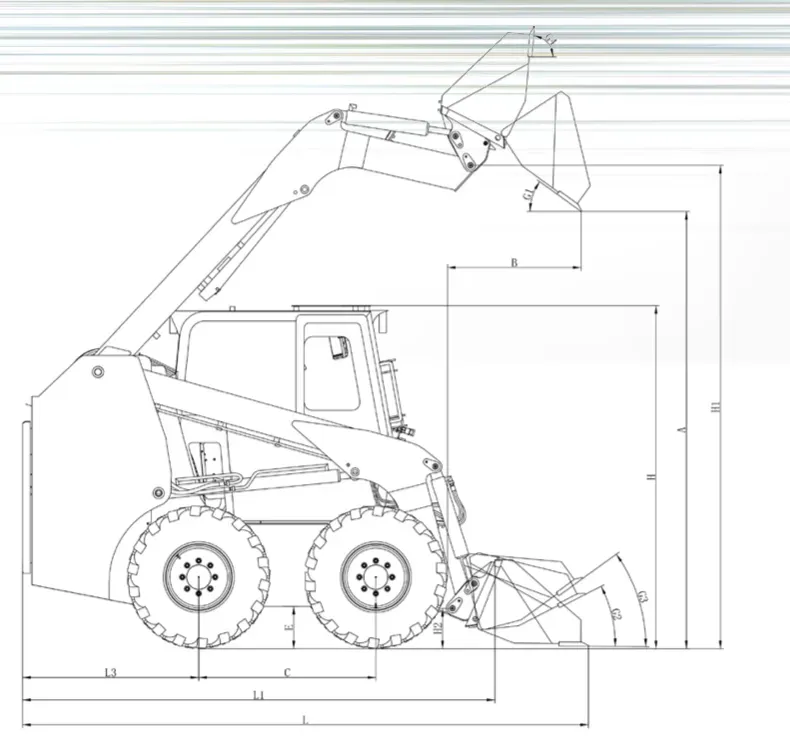

Dimension

Overall Length (mm)3.570
Overall Width (mm)1.815
Overall Height (mm)2.050
Wheelbase (mm)1.080
Wheel Tread (mm)1.385

General Specification

Operating Weight3.960 kg
Bucket Capacity0.54 m³
Rated Load1.400 kg
Maximum Breakout Force> 28 Kn

Steering and Operation

Steering Angle (L/R)30°
Minimum Turning Radius1.625 mm
Dumping Height3.090 mm
Lifting time (boom)< 34.1 s
Total Cycle time of lifting-dumping-lowering< 9.4 s

Need the Full Technical Catalog?

Download the complete product catalog for detailed specifications, configurations, and compatibility data for your engineering team.
