XG815EL/FL

Name: XG815EL/FL
Brand: XGMA
Availability: InStock

XGMA

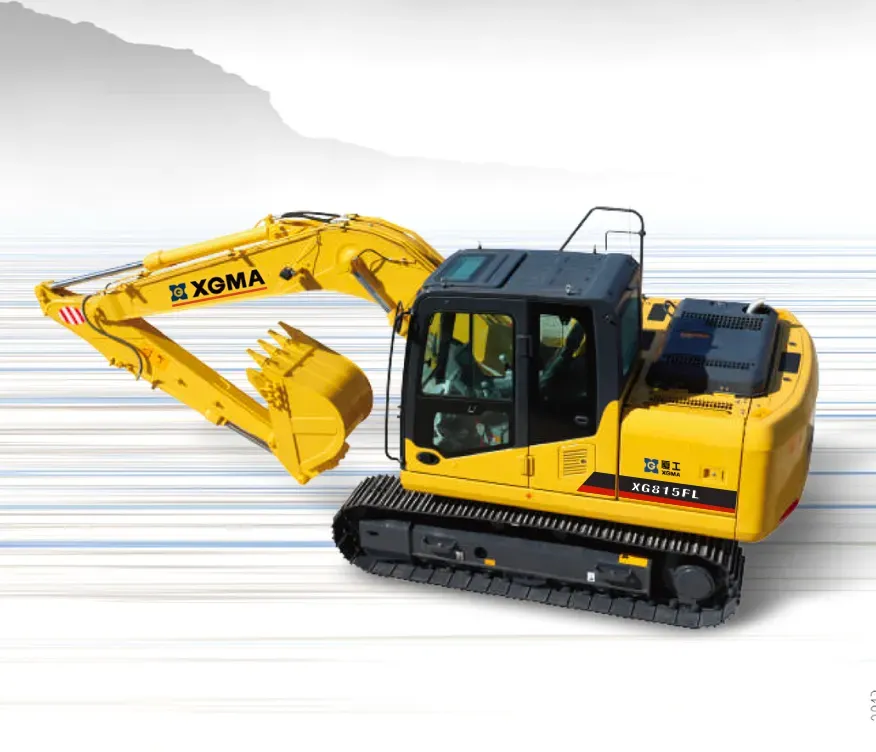

The XGMA XG815EL/FL is a versatile and robust hydraulic crawler excavator in the 14-ton class, specifically designed for high performance in medium-duty construction and earthmoving projects. Manufactured since 2021, it is part of XGMA's F-series, which focuses on balancing fuel efficiency with high operational productivity

Starting from

Call our sales team for pricing

6 Month Service Warranty

24 Month Dedicated Service

Paper Cleared and Always up-to-date

Operating Weight

13.9 - 14.5 Tons

Provides the necessary stability and ground pressure for heavy digging in varied terrains.

Bucket Capacity

0.61 - 0.75 m³

Standard bucket size optimized for high-volume earthmoving and trenching.

Hydraulic System

Negative Flow Feedback

Features advanced controls for precise, smooth movement of the boom and bucket during operation.

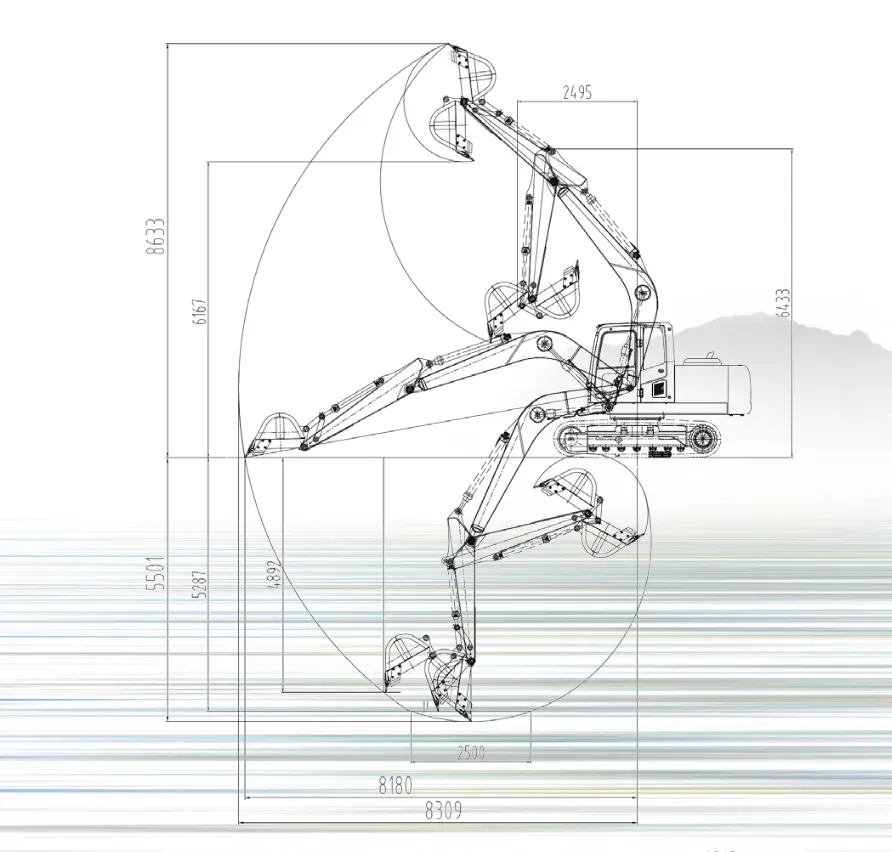

Digging Depth

~5.52 Meters

Capable of reaching deep for foundation work, utility trenching, and drainage projects.

Technical Specifications

Comprehensive engineering data for operational planning.

Dimension

Overall Length (mm)3.570

Overall Width (mm)1.815

Overall Height (mm)2.050

Wheelbase (mm)1.080

Wheel Tread (mm)1.385

General Specification

Operating Weight14.5 T

Bucket Capacity0.6 - 0.75 m³

Rated Load1.400 kg

Maximum Breakout Force> 28 Kn

Engine ModelCUMMINS 4BTAA3.9, CUMMINS QSF3.8

Steering and Operation

Steering Angle (L/R)30°

Minimum Turning Radius1.625 mm

Dumping Height3.090 mm

Lifting time (boom)< 34.1 s

Total Cycle time of lifting-dumping-lowering< 9.4 s

Need the Full Technical Catalog?

Download the complete product catalog for detailed specifications, configurations, and compatibility data for your engineering team.
